Setup Print item tickets to kitchen and drink printers

Note: The AZCPOS app is fully compatible with multiple operating systems, including Windows, macOS, and Linux. For the best experience and full access to features, it is recommended to install the AZCPOS app. The web version offers limited functionality. Specifically, the “Find Printer” feature is only available in the AZCPOS app and is not yet integrated into the web version.

Download and Install the App
Open your web browser, copy and paste the following link into the search bar, and press Enter: https://cloud.azcpos.com/s/XLp5oGfQj632sFz?path=%2F

Download the file VNVNRestaurant Setup 2.2.0.exe to your device and click Install to complete the installation.

1. Set Up a CloudPrint Printer

A CloudPrint printer utilizes cloud services to print from any device, anywhere, as long as it’s connected to the internet. There’s no need to connect directly to a POS machine.

This guide uses the Star Micronics TSP650II printer as an example.

Step 1: Connect the Printer to Your Local Network
  • Plug one end of the LAN cable into your hub/router.
  • Connect the other end of the LAN cable to the LAN port on the printer.

Step 2: Locate the Printer’s IP & MAC Address
  • Turn on the printer.
  • Hold down the Feed button until the information slip prints.
  • The slip will display the printer’s MAC Address and IP Address.

search-MAC-address-azcpossearch-IP-address-azcpos

Step 3: Configure the CloudPrint Printer
  1. Navigate to:
    • Admin → Settings → Device → Printer → Printer Tab → Click the “+ Add New” button
  2. Fill in all required fields as shown in the example below.
    • For the Path field, enter the MAC address of the printer you retrieved earlier.
  3. Click the “Save” button to save your settings.
    • Once saved successfully, the system will generate an API Path.
Important: Please make sure to save this API Path for future reference.

star-printer-azcpos
Step 4: Activate the API Path
  1. Open a web browser and enter the IP address printed earlier into the address bar. Press Enter.

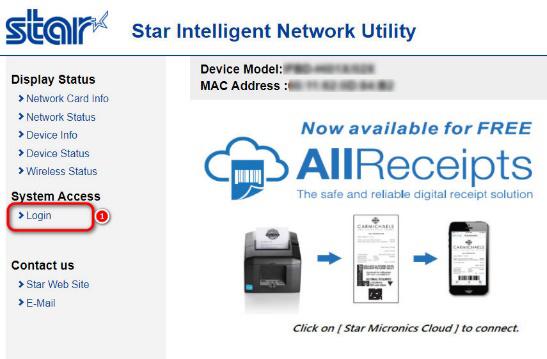

  2. On the Star Admin page:
    • Click the “Login” link.
    • Enter your username and password, then click “Login”.
star-login-azcpos

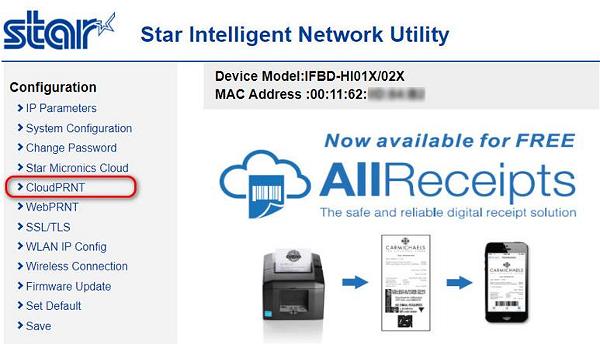

In the Configuration section, select CloudPRNT.

star-printer-CloudPRNT-azcpos

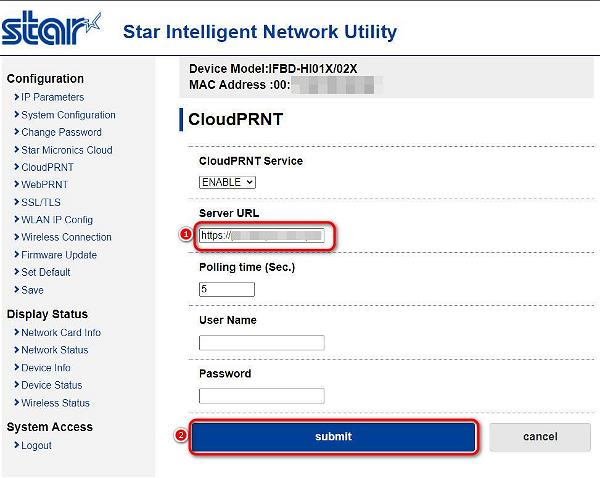

Paste the previously saved API Path into the Server URL field → Click “Submit”.

star-printer-server-url-azcpos
After clicking “Submit”, a confirmation message will appear: “CloudPRNT is accepted.”

→ Click “Save”, then in the information window, click “Execute”.

star-printer-execute-azcpos
⇒ Success! Your CloudPrint printer is now set up and ready to use.


2. Installing a USB Printer (VNVNCLOUD)

A USB printer is a commonly used device that allows for quick and easy printing by simply connecting it to your POS system via a USB port. To set up the printer, connect one end of the USB cable to the POS system and plug the power cord into an electrical outlet.

For this guide, we will use the Star mC-Print3 printer as an example.

Step 1: Install Zadig

Open your web browser, copy the link below, paste it into the address bar, and press Enter:
https://cloud.azcpos.com/s/XLp5oGfQj632sFz?path=%2Fwin32%2Fx64

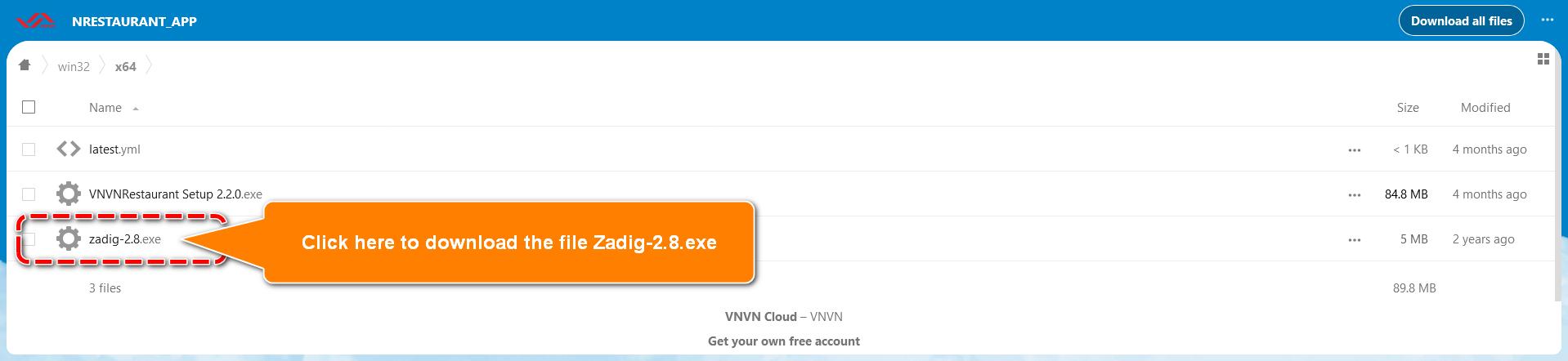

Download the Zadig-2.8.exe file to your computer and click Install to begin installation.

Download-Zadig-azcpos

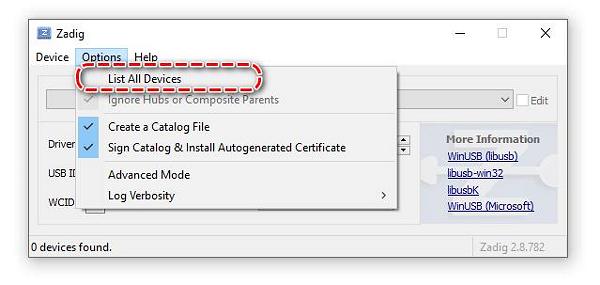

Once the Zadig interface opens, click Options → Select List All Devices.

Zadig-layout-list-all-device-azcpos
If your printer is successfully connected to the POS system, its information will appear on the list.

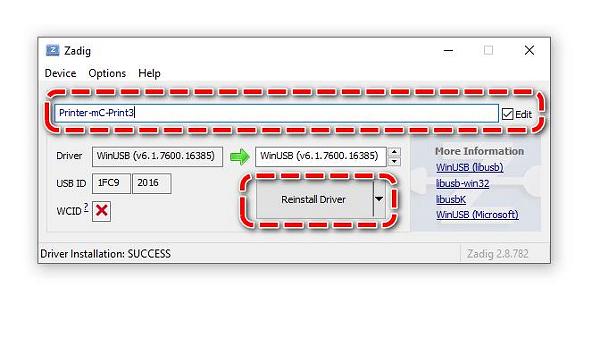

Select Printer-80 (you can click Edit to rename it, if desired). Click Replace Driver (if the driver is already installed, you’ll see Reinstall Driver instead, as shown in the image).

Wait for the installation to complete. A notification will confirm success.

Zadig-layout-printer-azcpos
Step 2: Set Up the USB Printer (VNVNCLOUD)

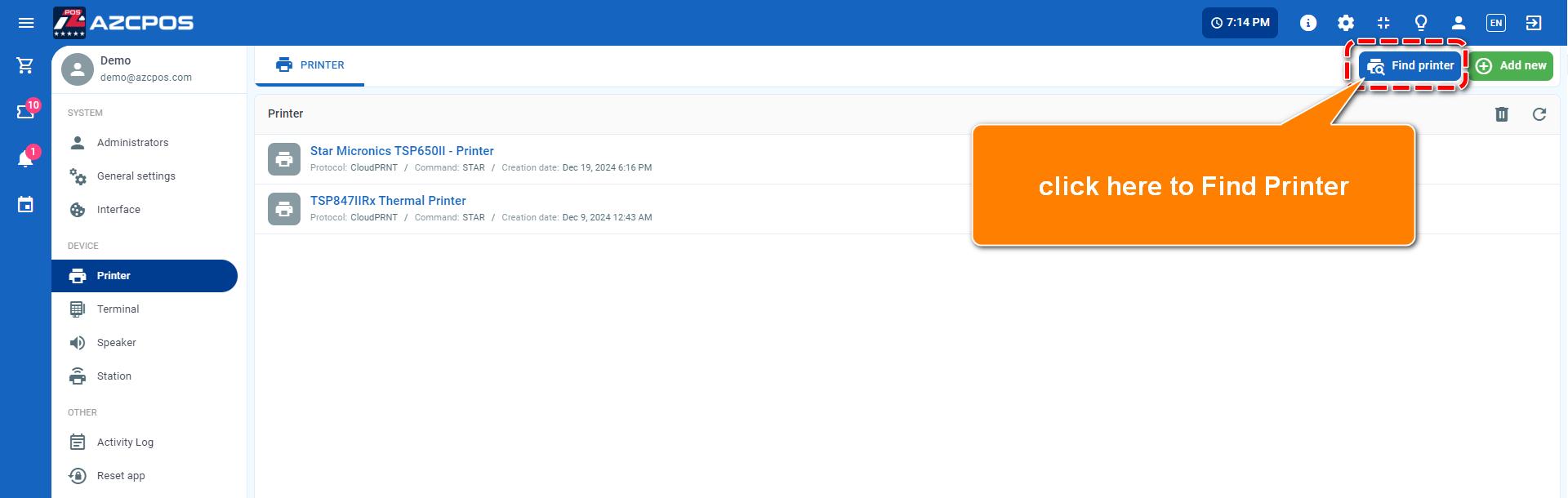

After installing Zadig, navigate to Settings → Printer → Click the Find Printer button.

Find Printer-azcpos

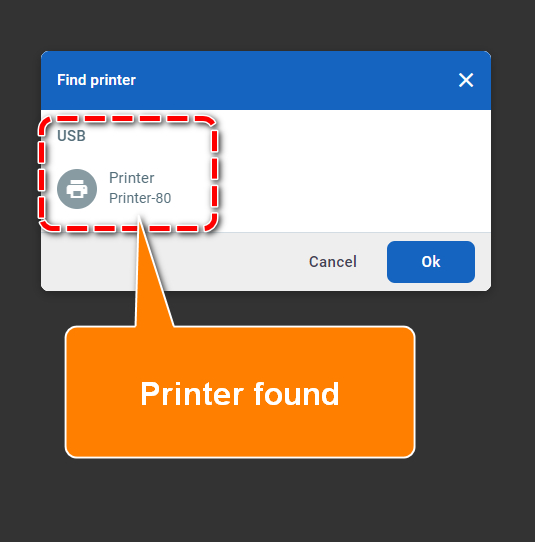

If the printer is successfully detected, it will appear in the list of connected devices. Select the printer and click “OK”.

Printer found-80-azcpos

You can rename the printer under Printer Name, if desired.
Zadig-layout-printer-edit-name-azcposOnce completed, a confirmation screen similar to the one below will appear, indicating the successful setup of the USB printer (VNVNCLOUD).

layout-printer-azcpos


3. Setting Up a Bluetooth Printer

A Bluetooth printer is a wireless device that connects remotely via Bluetooth without needing a USB connection to a computer.

In this guide, we use the Bluetooth printer model 58HB6.

Step 1: Connect Bluetooth

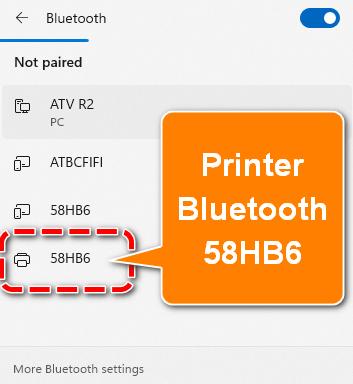

Enable the Bluetooth function → select the correct printer model you have. (In this guide, we use the Bluetooth printer model 58HB6)

printer-bluetooth-azcpos

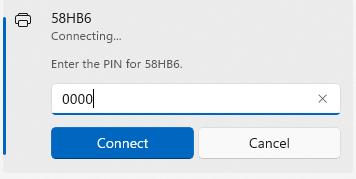

Enter the PIN code. The default PIN for Bluetooth printers is 0000.

pin-printer-azcpos

The printer will appear under the "Paired Devices" section → successfully connected.

Paired devices-azcpos

Step 2: Configure the Bluetooth Printer

Go to SettingsPrinter → click the "Find Printer" button.

Find Printer-azcpos
If the search is successful, the connected printer will appear as shown below → Select the printer → then click "OK".

bluetooth-Printer found-azcpos
After selecting the printer, you can rename it in "Printer Name" if desired.

→ The Bluetooth printer model 58HB6 has been successfully set up.

Note: If your printer is a small, handheld type, make sure to adjust the Paper Width from 48mm to 32mm.


4. Choose Printer for Cashier and Kitchen

  • Go to Admin → Settings → Device → Station.
  • In the Station tab, a list of available stations will appear. If no station exists, click the “+ Add new” button to create one.

station-printer-azcpos
Example 1:

To assign a printer to the Cashier station:
  • Select “Printer - mC-Print3” → Click on Cashier.
  • From the Printers dropdown menu, choose “Printer - mC-Print3 Thermal.” → Click “Update.”

→  The printer is now successfully assigned to the Cashier station.

cashier-printer-azcpos

Example 2:

To assign a printer to the Kitchen station:
  • Select “Printer - Label (Star).” → Click on Kitchen.
  • From the Printers dropdown menu, choose “Printer - Star Micronics TSP650II.” → Click “Update.”

→ The printer is now successfully assigned to the Kitchen station.

kitchen-printer-azcpos

5. Testing the Printer's Functionality

Test the Star mC-Print3 Printer at the Cashier Counter

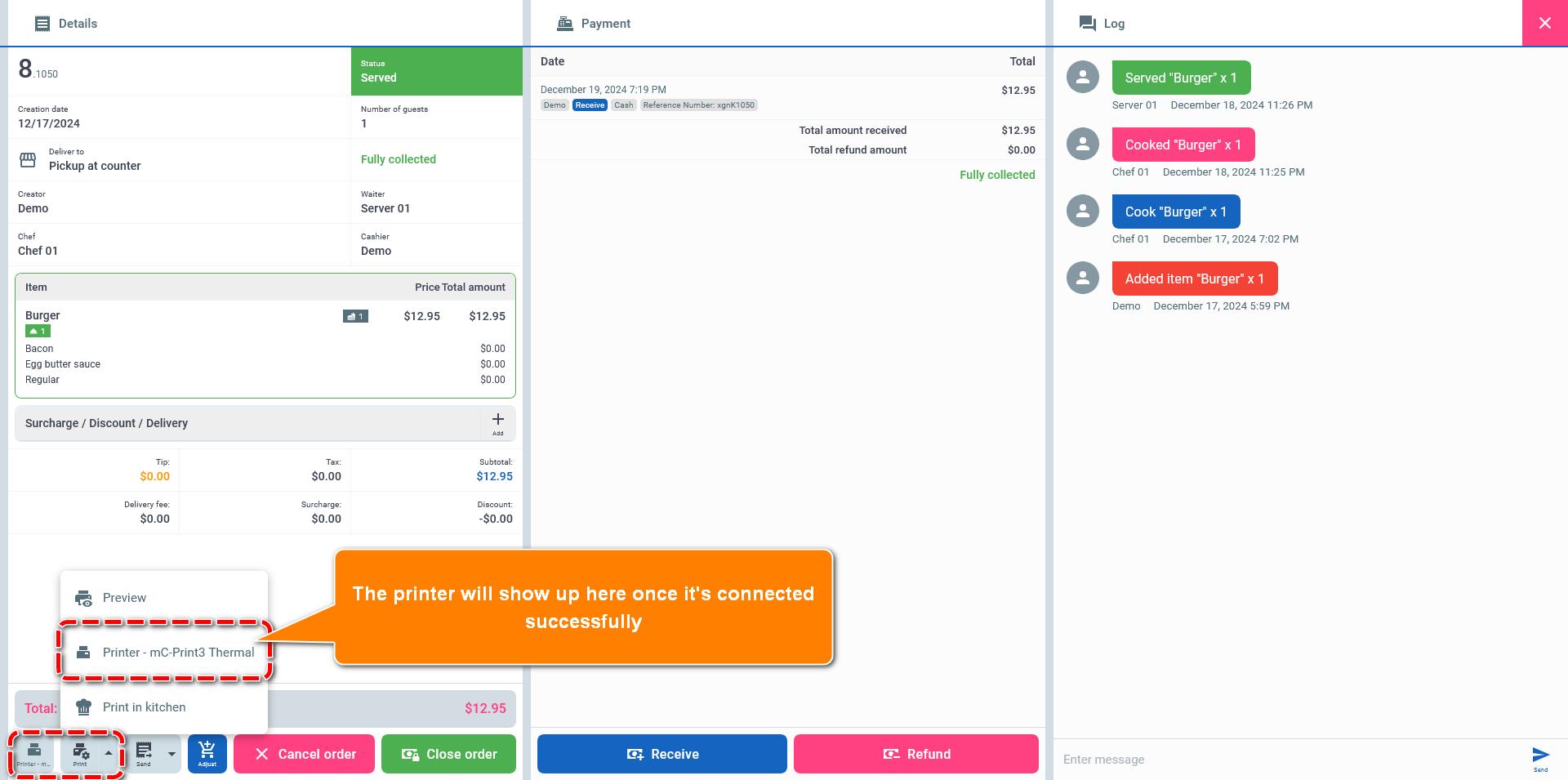

Step 1: After signing into your POS system, click on Order-Ticket.

Step 2: Select an order → click View Detail Order → press the Print button at the bottom of the screen.

A prompt will display the successfully connected printer name → Select the printer to print the invoice.

test-printer-azcpos
